Available Colors: Black, Beige
Product Description:
| One of the most popular removable drive rack line, the MB988 Series has an uncomplicated exterior but durable quality that’s capable of meeting the demands among system integrators. With full aluminum built body cooling and front intake fan bringing in cool air into the drive environment, the unit provides comfort for hard drive operation and fan maintenance is easy by detaching the front faceplate. Lock protection is also included for drive security purposes. |
Suggested Applications |
| Industrial PC, server, and various storage system applications requiring storage drive security, exchangeability, expandability, manageability. |
Product Features: |
* Drive Fit : 1 x 3.5" ATA 133 / Hot Swappable
80pin SCSI ULTRA 320 * Device Fit : 1 x 5.25" device bay * Internal drive security, exchangeability, expandability and maintenance capabilities * Plain and simple exterior with full aluminum built cooling body * Drive security with a key lock * Cool air intake fan cooling of drive * Daisy chainable SCSI model * Advanced drive monitoring system built internally w/ visual & audio indicators for SCSI model |
Models & Specifications
|
| Where to buy: |  |
|
 |
|
|
| Item Number: Beige | MB988AK |

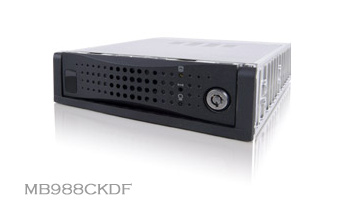

MB988CKDF |
| Item Number: Black | MB988AK-B |
MB988CKDF-B |
| Internal Host |
40 pin IDE |
68 pin SCSI converting to
80 pin SCSI |
| Drive Fit | 1 x 3.5” ATA 133 |
1 x 3.5” 80 pin SCA |
| Drive Bay | 1 x 5.25” |
|
| Transfer Rate | 133 MB/sec. |
320 MB/sec. |
| Insert & Extract connection Via | 64 pin industrial DIN converter |
80 pin SCA direct hard drive
connection |
| Structure | Full Aluminum
|
|
| Drive Cooling | Rear outtake
fan w/ aluminum heat dispersion |
|
| Alarm Indication | Visual |
Audio & Visual |
| LED Indication | Device Power & Drive
Activity |
SCSI Drive ID, Drive activity/overheat/failure,
Fan working/failure status, |
| LED Display Color | Green : Device Power ; Amber
: Drive activity/overheat/failure |
Green : Device Power ; Amber
: Drive activity/overheat/failure ; Red: Drive failure |
| Drive Security | 2 segment key
lock |
|
| Dimension (L x W x H) | 235.5 x 146.0
x 128.0 mm |
|
| Weight | 2.10 lbs. |
|
