Available in Fall 2006 |
 |
|
 |
 |
 |
Please Click Icon for Icon Description
Available Colors: Black
Product Description:

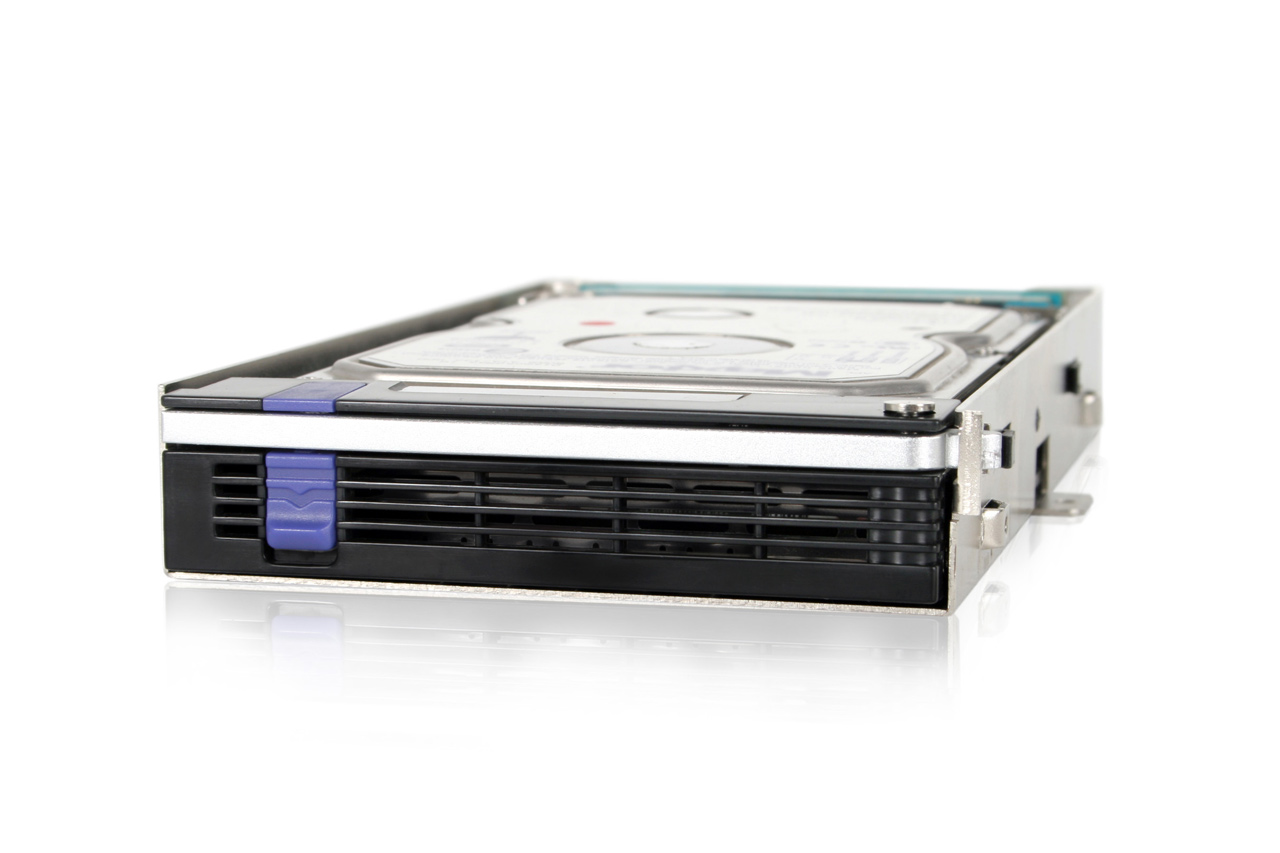

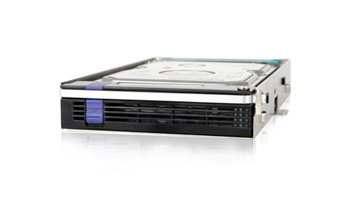

| Hard drive removal does not always have to be
confined to a standard 5.25” device bay when it comes to designing
and engineering a system. If you’re a designer or engineer developing
a system needing hard drive removal capability but don’t wish
to use an off the shelf 5.25” drive racks, then the MB558 Series
will be your immediate solution. Available to support both IDE and
SATA I/II, the MB558 Series is a non standard form factor removable
drive rack that holds a standard 3.5” drive but still keep your
system design slim and compact. The series contains a mounting body

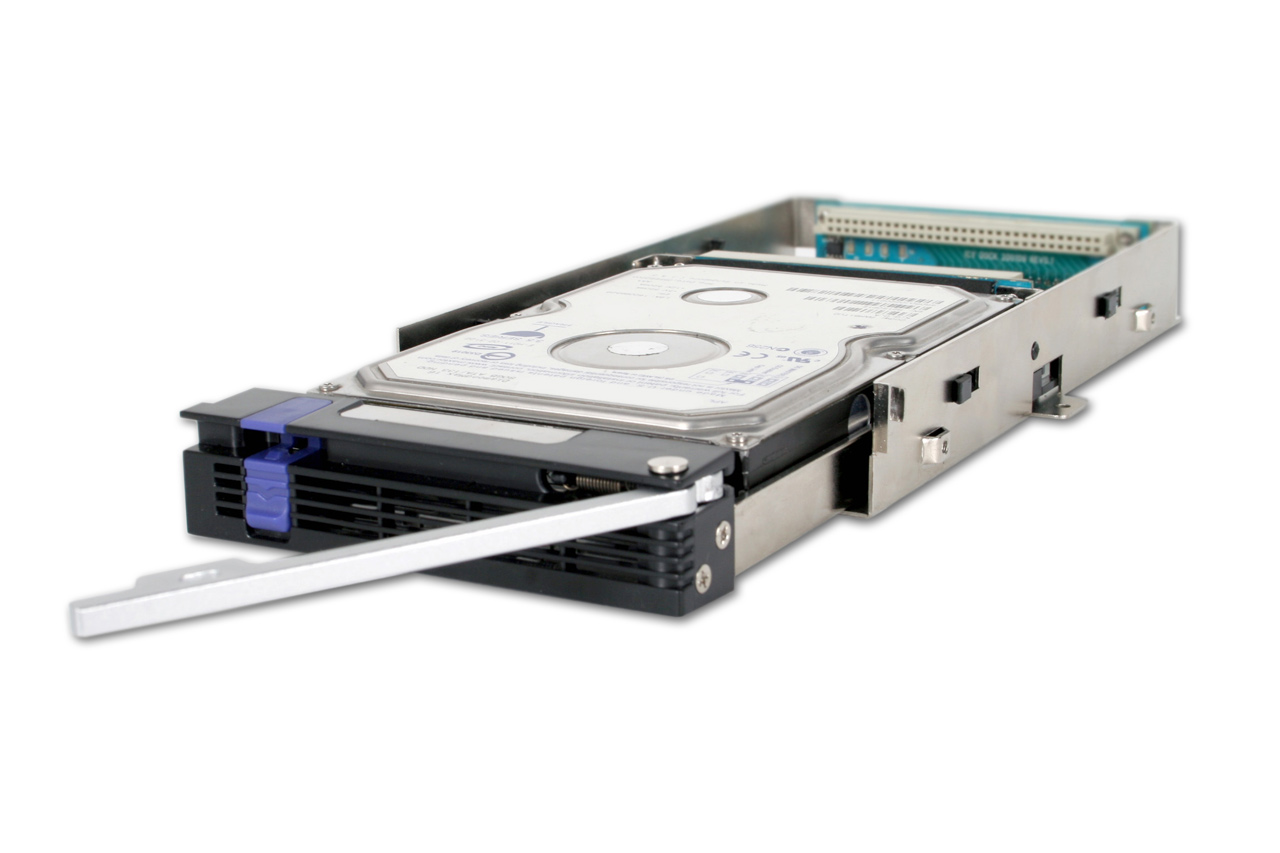

and a drive tray that are both constructed from solid steel plate. It’s also equipped with industrialized I/O boards, anti-vibration rails for the most durable storage performance. The eject-able handle at front is easy to utilize when removing the drive but it also adds a sleek look to your system. |
Suggested Applications |
| Systems requiring storage drive security, exchangeability, expandability, manageability with slim & compact design. |
Product Features: |
* Drive Fit : 1 x 3.5" ATA 133 / Hot Swappable
SATA I or II * Device Fit : Non-Standard * Immediate removable drive solution for system developing designers or engineers * Internal drive security, exchangeability, expandability and maintenance capabilities * Durable steel plate built w/ industrialized I/O boards |
Models & Specifications
|
| Item Number:Black | MB558AP |
MB558SP |
| Internal Host | 40 pin IDE |
7 pin SATA |
| Drive Fit | 1 x 3.5” ATA 133 |
1 x 3.5” SATA I / II |
| Drive Bay |
Non-standard |
|
| Transfer Rate | 133 MB/sec. |
3Gb/sec. |
| Insert & Extract connection Via | 64 pin industrial DIN converter |
15 pin direct hard drive connection |
| Structure |
Stainless steel plate w/ partial plastic |
|
| Drive Security |
Drive tray locking mechanism |
|
| Output Signals |
Device power, Device power on/off, Drive activity |
|
| Dimension (L x W x H) |
212 x 132 x 28 mm |
|
| Weight |
1.10 lbs |
|
